ウェッジワイヤー円筒スクリーン（ロータリードラムスクリーン）

Wedge Wire Cylindrical Screen (Rotary Drum Screen)

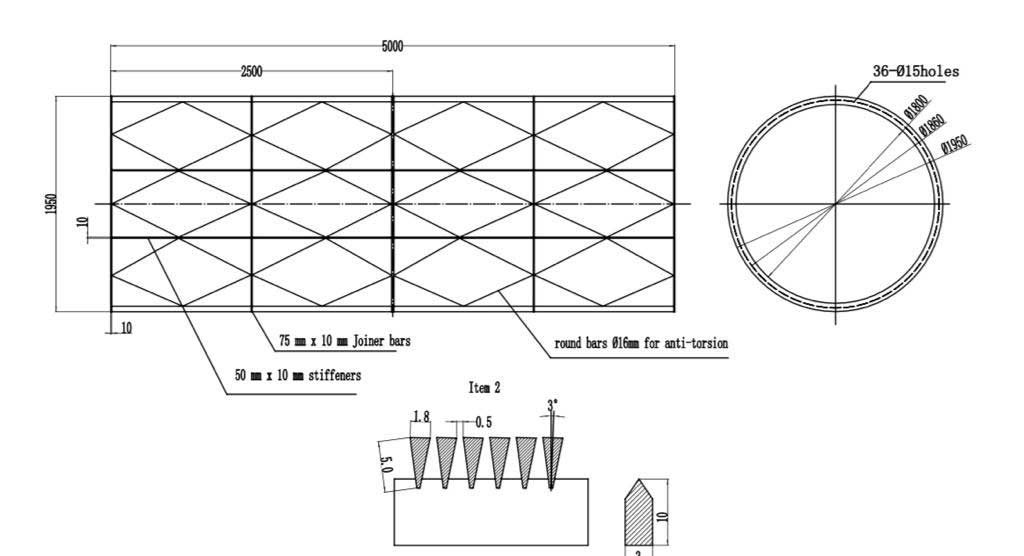

Rotary Screen Drums are widely used in Liquid-Solid separation equipment. There are basically two types of constructions. One piece all welded construction, and segmented construction in sections for ease of parts replacement in abrasive applications.

OKINAWA FILTERS has developed proprietary designs for different applications such as sugar and ethanol processes, mining, waste water treatment, etc. These designs include rotary drums that feature slot openings from 50 microns (0.002”) to 10 mm (0.4”), segmented drums for standard sector replacements, diverse solid removal systems and reinforcements for heavy duty applications. Drum diameters and lengths can be as large as 3 meters (10 ft) and 7 meters (23 ft) respectively.

In addition to our proprietary and well-tested designs, OKINAWA FILTERS fabricates rotary drums according to customer’s specific designs.

OKINAWA FILTERS ROTARY DRUM SCREEN’S FEATURE

Long life cycle, minimum maintenance.
Precise slot openings from microns to millimeters.
Robust, self-supporting structures.
Large open areas allow high flows and reduced pressure drops.
Can be designed to resist corrosion, temperature, pressure, and loads.
Non-blinding.

APPLICATIONS:

Stainless Steel Rotary Drum Screen is widely used in the modern industry. We can customize products of various specifications for:

Sugar Cane Juice/Bagasse Separation (Fine Slot Openings).
Clarified Cane Juice/Bagasse Separation (Very Fine Slot Openings).
Industrial Processes (Gelatins, Lemon Juice, Gluten, etc.).
Municipal and Industrial Waste Water Treatment.
Fish Meal Plant SeaWater Discharge.
Solids Classification / Mining.

OKINAWA FILTERS CO., LTD., provides you affordable, reliable and efficient filtration solutions and perfect service.
