シングルバグフィルターハウジング

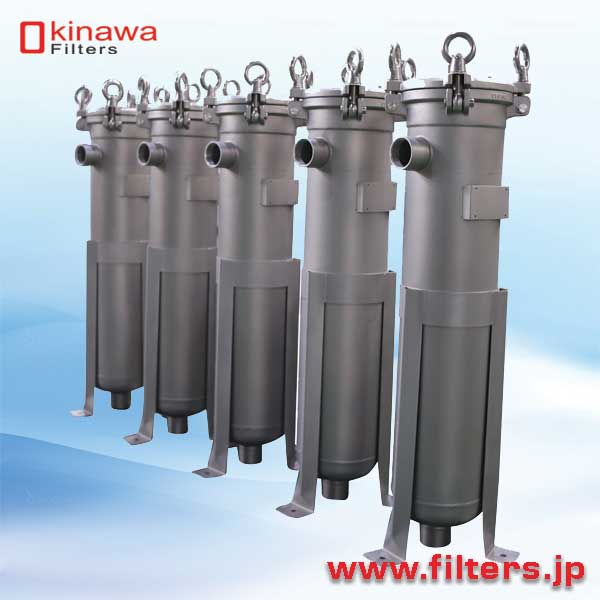

Single Bag Filter Housing

Safe and suitable for less flow working conditions. Available in Bag Size 01 and 02. Easy to open. Material: SS304 or SS316L according to the client’s requirements. Inlet and outlet connections are 2” NPT thread or 2” ANSI flange. Surface Finish: Bead Blasted and Polish.

MODELS AND TECHNICAL SPECIFICATIONS

S.#.	01
Model	OFSB-FH
No. Of Bags	01
Size Of Bags	(7”x17”) (7”x32”)
Max. Operating Temp.	120 °C
Max. Operating Pressure	10 bar
Filter Area	0.50 m²
Flow Rate	40 m³/h
Housing Volume	30 L
Inlet/Outlet Connection	2 Inches

Applications:

Applied in high flow & general process industries like

Food & Dairy Products
Beverages
Sugar Factory
Flour Mills
Lubricant Edible Oils
Paper & Board
Inks & Dyes
Chemicals & Petrochemicals
Fertilizers & Petroleum

Paints & Powder Coating
Hot Melt & Waxes
Cement Factory
Pharmaceuticals
Ceramic and Mortar
Glues & Adhesives
Resins
Water Treatment and other industrial fields

OKINAWA FILTERS CO., LTD., provides you affordable, reliable and efficient filtration solutions and perfect service.
