ハイフロー垂直開口インラインマルチバッグフィルターハウジング

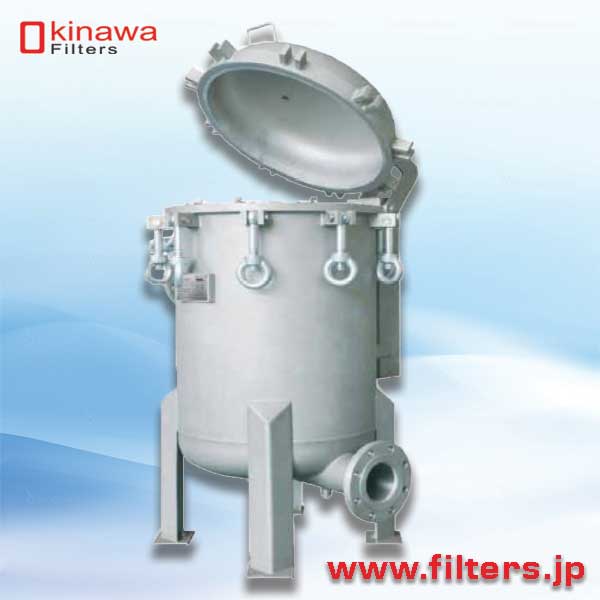

High Flow Vertical Opening In-Line Multi Bags Filter Housing
Safe and suitable, Vertical Opening Type. Mainly used in more impurities and high flow working conditions. Available in 4-24 Multi Bags Filter Housings. Material: SS304 or SS316L according to the client’s requirements. Inlet and outlet connections are from 4 inches to 14 inches flange, meet different flow requirements. Connection Type: In-Line or Loop. Surface Finish: Bead Blasted and Polish.
MODELS AND TECHNICAL SPECIFICATIONS
| S.#. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
| Model |
OFVO4-IL |
OFVO6-IL |
OFVO8-IL |
OFVO10-IL |
OFVO12-IL |
OFVO16-IL |
OFVO20-IL |
OFVO24-IL |
| No. Of Bags |
04 |
06 |
08 |
10 |
12 |
16 |
20 |
24 |
| Size Of Bags |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
| Max. Operating Temp. |
120 °C |
120 °C |
120 °C |
120 °C |
120 °C |
120 °C |
120 °C |
120 °C |
| Max. Operating Pressure |
10 bar |
10 bar |
10 bar |
10 bar |
10 bar |
10 bar |
10 bar |
10 bar |
| Filter Area |
2.0 m² |
3.0 m² |
4.0 m² |
5.0 m² |
6.0 m² |
8.0 m² |
10.0 m² |
12.0 m² |
| Flow Rate |
160 m³/h |
240 m³/h |
320 m³/h |
400 m³/h |
480 m³/h |
640 m³/h |
800 m³/h |
960 m³/h |
| Housing Volume |
220 L |
330 L |
440 L |
550 L |
660 L |
880 L |
1,100 L |
1,320 L |
| Inlet/Outlet Connection |
4-6 Inches |
4-6 Inches |
6-8 Inches |
6-8 Inches |
8-10 Inch |
10-12 Inch |
12-14 Inch |
12-14 Inch |
Applications:
Applied in high flow & general process industries like
| |
- Food & Dairy Products
- Beverages
- Sugar Factory
- Flour Mills
- Lubricant Edible Oils
- Paper & Board
- Inks & Dyes
- Chemicals & Petrochemicals
- Fertilizers & Petroleum
|
- Paints & Powder Coating
- Hot Melt & Waxes
- Cement Factory
- Pharmaceuticals
- Ceramic and Mortar
- Glues & Adhesives
- Resins
- Water Treatment and other industrial fields
|
OKINAWA FILTERS CO., LTD., provides you affordable, reliable and efficient filtration solutions and perfect service.
