ハイフロークイックオープニングインラインマルチバッグフィルターハウジング

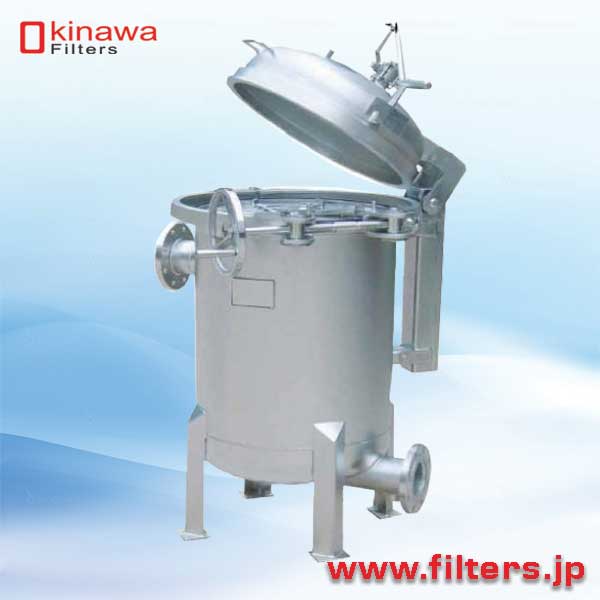

High Flow Quick Opening In-Line Multi Bags Filter Housing
Fast, safe and suitable for quick replacement of filter bags. Mainly used in more impurities, filter elements need to be replaced frequently and continuous production and fast switching filter. Available in 4-12 Multi Bags Filter Housings. Material: SS304 or SS316L according to the client’s requirements. Inlet and outlet connections are from 4 inches to 10 inches flange, meet different flow requirements. Connection Type: In-Line or Loop. Surface Finish: Bead Blasted and Polish.
MODELS AND TECHNICAL SPECIFICATIONS
| S.#. |
01 |
02 |
03 |
04 |
05 |
| Model |
OFQO4-IL |
OFQO6-IL |
OFQO8-IL |
OFQO10-IL |
OFQO12-IL |
| No. Of Bags |
04 |
06 |
08 |
10 |
12 |
| Size Of Bags |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
Size 2 (7”x32”) |
| Max. Operating Temp. |
120 °C |
120 °C |
120 °C |
120 °C |
120 °C |
| Max. Operating Pressure |
10 bar |
10 bar |
10 bar |
10 bar |
10 bar |
| Filter Area |
2.0 m² |
3.0 m² |
4.0 m² |
5.0 m² |
6.0 m² |
| Flow Rate |
160 m³/h |
240 m³/h |
320 m³/h |
400 m³/h |
480 m³/h |
| Housing Volume |
220 L |
330 L |
440 L |
550 L |
660 L |
| Inlet/Outlet Connection |
4-6 Inches |
4-6 Inches |
4-6 Inches |
4-6 Inches |
4-6 Inches |
Applications:
Applied in high flow & general process industries like
| |
- Food & Dairy Products
- Beverages
- Sugar Factory
- Flour Mills
- Lubricant Edible Oils
- Paper & Board
- Inks & Dyes
- Chemicals & Petrochemicals
- Fertilizers
|
- Paints & Powder Coating
- Hot Melt & Waxes
- Cement Factory
- Petroleum
- Pharmaceuticals
- Ceramic and Mortar
- Glues & Adhesives
- Resins
- Water Treatment and other industrial fields
|
OKINAWA FILTERS CO., LTD., provides you affordable, reliable and efficient filtration solutions and perfect service.
